Type K morse taper insert

Type K morse taper

ref.emboutcmk

K type (bull noise point) morse taper insert for live center, for high-precision machining.

• Machine taper N°3 to N°5

Ø Morse taper
MT3 to MT5
Product file
Dimension
Concentricity less than mm
Diameter A
C
Diameter b
Diameterm
Quantity
In stock

Ask a quote


Delivery Policy - 4 to 8 business days after payment receipt



Secure paiement : • Visa • MasterCard

K type (bull noise point) morse taper insert for live center, for high-precision machining.

• Machine taper N°3 to N°5

ER1847

Data sheet

Morse taper
MT3 to MT5
Applications
Gear cutting
Inspection
Mechanical grinding
Turning

Applications

Turning

Inspection

Gear cutting

Mechanical grinding

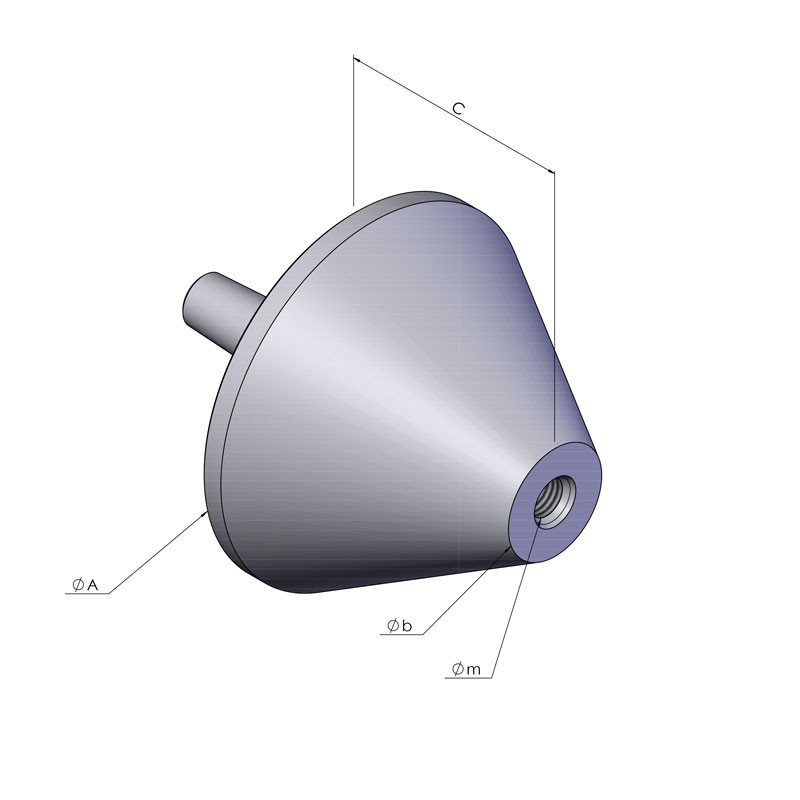

Type K morse taper insert technical drawing
Type K morse taper insert technical drawing
Designation Prix Dimension Concentricity less than mm Diameter A C Diameter b Diameter m

morse-taper-insert-centers Type K morse taper

Reference Price Add to cart Add to quote Dimension Concentricity less than mm Diameter A C Diameter b Diameter m
ER1847 CHF145.00
Morse N°3 0.002 40 43 20 M8
ER1850 CHF218.00
Morse N°4 0.002 65 55 27 M10
ER1853 CHF428.00
Morse N°5 0.002 85 68 37 M12
