Type P morse taper insert

Type P morse taper

ref.emboutcmp

P type morse taper insert for live center, for high-precision machining.

• Machine taper N°3 to N°5

Ø Morse taper
MT3 to MT5
Product file
Dimension
Concentricity less than mm
Diameter A
C
Quantity
In stock

Ask a quote


Delivery Policy - 4 to 8 business days after payment receipt



Secure paiement : • Visa • MasterCard

P type morse taper insert for live center, for high-precision machining.

• Machine taper N°3 to N°5
ER1832

Data sheet

Morse taper
MT3 to MT5
Applications
Gear cutting
Inspection
Mechanical grinding
Turning

Applications

Turning

Inspection

Gear cutting

Mechanical grinding

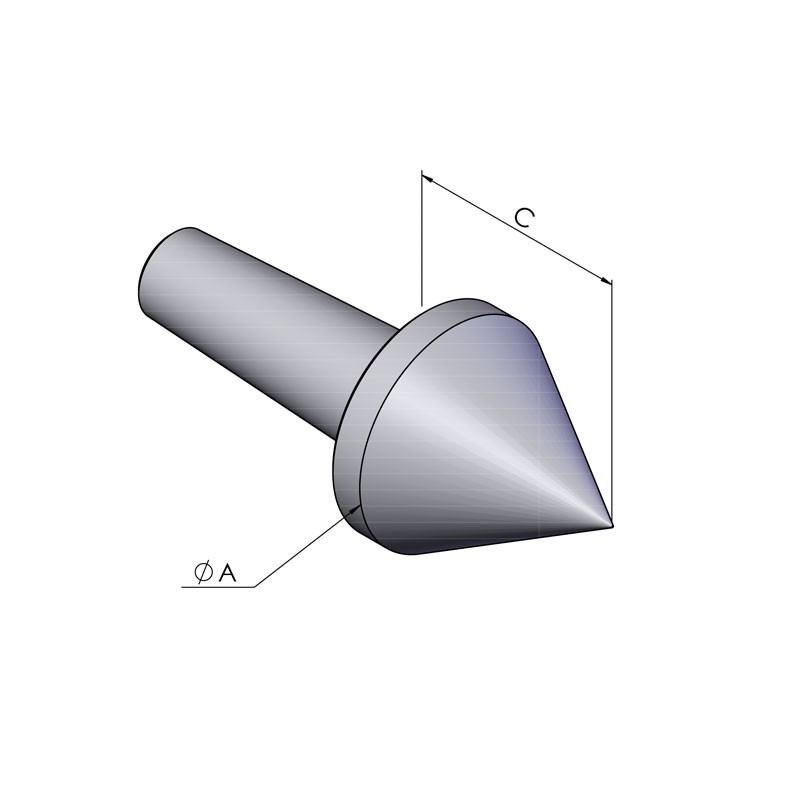

Type P morse taper insert technical drawing
Type P morse taper insert technical drawing
Designation Prix Dimension Concentricity less than mm Diameter A C

morse-taper-insert-centers Type P morse taper

Reference Price Add to cart Add to quote Dimension Concentricity less than mm Diameter A C
ER1832 CHF102.00
Morse N°3 0.002 24 24.5
ER1814 CHF111.00
Morse N°4 0.002 31 31,8
ER1841 CHF125.00
Morse N°5 0.002 40 40
