Type REGO-FIX
ref.typeregofix
Rotating center for interchangeable insert type REGO-FIX (4° taper).
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Lifetime lubrication
- Ø Morse taper
- MT1 to MT3
- Ø Maximum revolutions per minute
- from 5000 to 6500
-
Product file
-
-
CAD file
-
Delivery Policy - 4 to 8 business days after payment receipt
Secure paiement : • Visa • MasterCard
Rotating center for interchangeable insert type REGO-FIX (4° taper).
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Lifetime lubrication
GE1072
Data sheet
- Morse taper
- MT1 to MT3
- Maximum revolutions per minute
- from 5000 to 6500
- Applications
- Gear cutting
Inspection
Mechanical grinding
Turning
Applications
Turning
Inspection
Gear cutting
Mechanical grinding

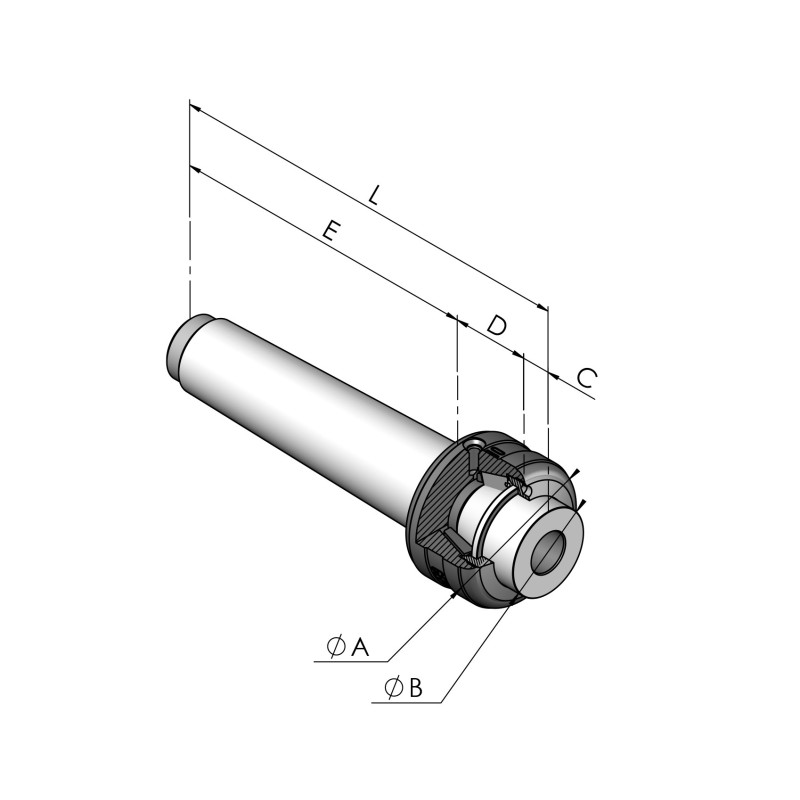

| Designation | Prix | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|
live-center Type REGO-FIX
| Reference | Price | Add to cart | Add to quote | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GE1072 | CHF385.00 | Morse N°1 | 6500 | 600 | 80 | 0.002 | 25 | 12 | 10 | 13 | 57 | 80 | - | - | - | - | ||
| GE1078 | CHF420.00 | Morse N°2 | 6000 | 800 | 150 | 0.002 | 29 | 18 | 6 | 19 | 68 | 92 | - | - | - | - | ||
| GE1045 | CHF516.00 | Morse N°3 | 5000 | 1100 | 350 | 0.002 | 40 | 24 | 9 | 24 | 85 | 115 | - | - | - | - |
