Type morse
ref.typemorse
Rotating center for interchangeable sleeves / points / inserts morse taper.
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Machine taper N°3-5
• Various inserts to suit your needs
• Lifetime lubrication
- Ø Morse
- M3 to M5
- Ø Maximum revolutions per minute
- Starting from 3000
-
Product file
-
-
CAD file
-
Delivery Policy - 4 to 8 business days after payment receipt
Secure paiement : • Visa • MasterCard
Rotating center for interchangeable sleeves / points / inserts morse taper.
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Machine taper N°3-5
• Various inserts to suit your needs
• Lifetime lubrication
GE1709
Data sheet
- Morse
- M3 to M5
- Maximum revolutions per minute
- Starting from 3000
- Applications
- Gear cutting
Inspection
Mechanical grinding
Turning
Applications
Turning
Inspection
Gear cutting
Mechanical grinding

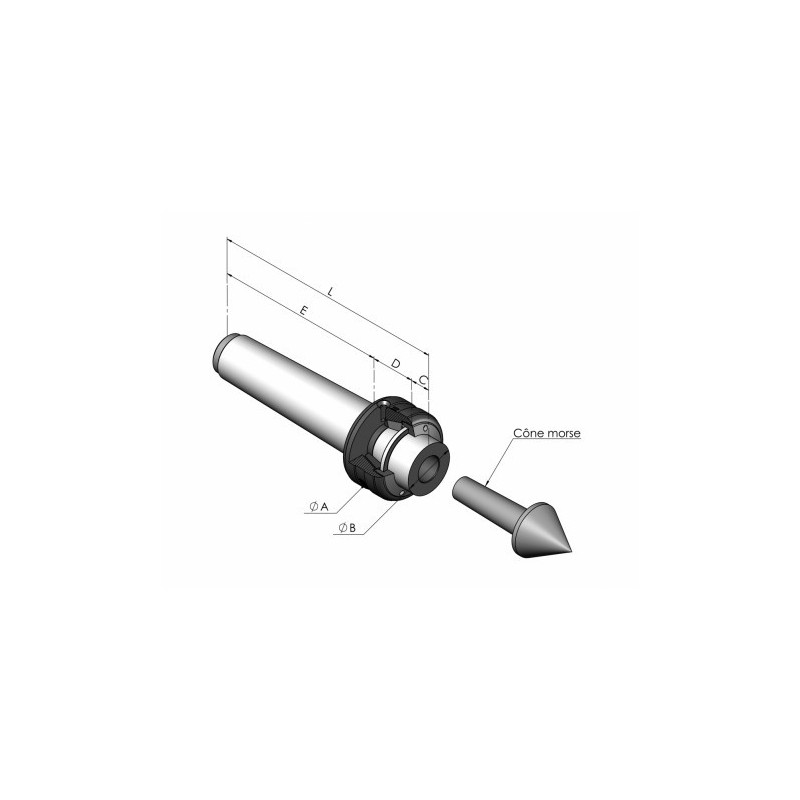

| Designation | Prix | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L |
|---|
live-center Type morse
| Reference | Price | Add to cart | Add to quote | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GE1709 | CHF588.00 | Morse N°3 | 5000 | 1100 | 350 | 0.002 | 40 | 24 | 9 | 24 | 85 | 118 | ||
| GE1710 | CHF664.00 | Morse N°4 | 4000 | 1400 | 500 | 0.002 | 49 | 31 | 10 | 28 | 108 | 146 | ||
| GE1711 | CHF783.00 | Morse N°5 | 3000 | 1800 | 700 | 0.002 | 60 | 40 | 12 | 33 | 136 | 181 |
