Type LG
ref.typelg

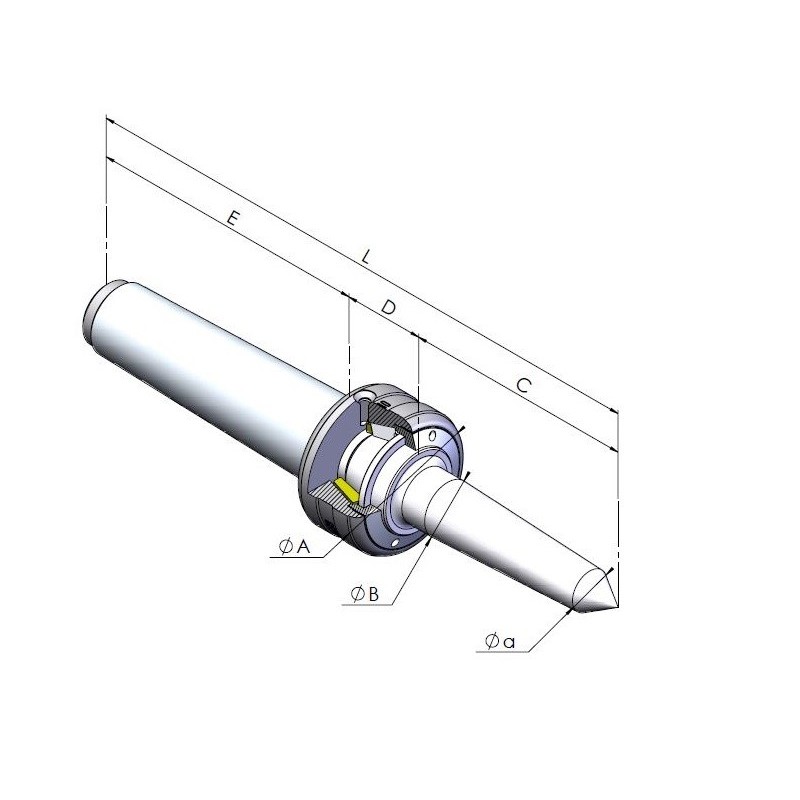

Type LG Live center.
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Lifetime lubrication
- Ø Morse taper
- MT3 to MT4
- Ø Maximum revolutions per minute
- from 4000 to 5000
-
Product file
-
-
CAD file
-
Delivery Policy - 4 to 8 business days after payment receipt
Secure paiement : • Visa • MasterCard
Type LG Live center.
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Lifetime lubrication
GE2035
Data sheet
- Morse taper
- MT3 to MT4
- Maximum revolutions per minute
- from 4000 to 5000
- Applications
- Gear cutting
Inspection
Mechanical grinding
Turning
Applications
Turning
Inspection
Gear cutting
Mechanical grinding

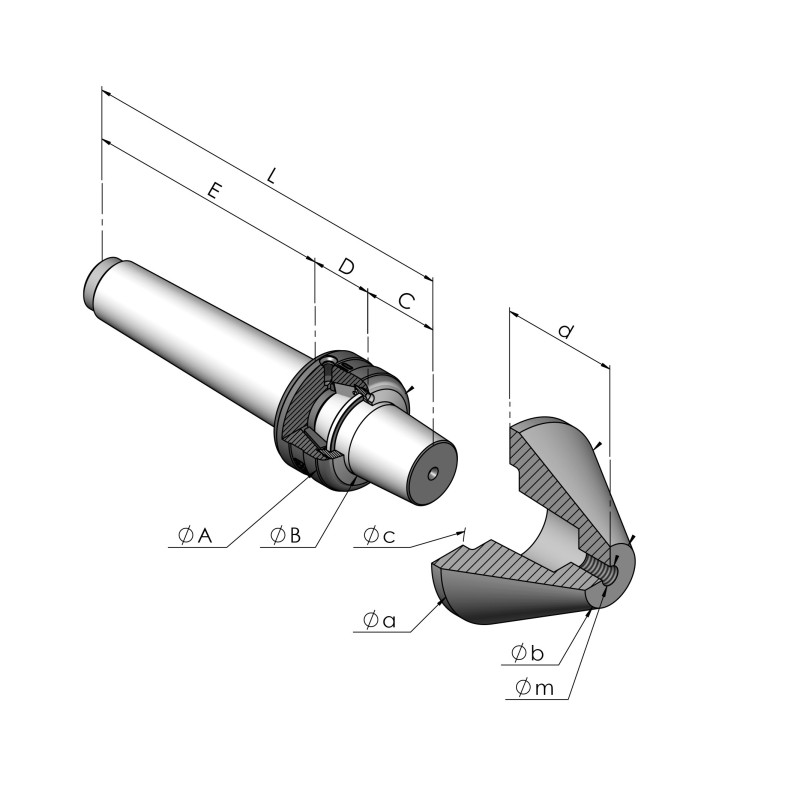

| Designation | Prix | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|
live-center Type LG
| Reference | Price | Add to cart | Add to quote | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GE2035 | CHF705.00 | Morse N°3 | 5000 | 1100 | 350 | 0.002 | 39.5 | 16 | 70 | 24.2 | 85 | 179.2 | 12 | - | - | - | ||
| GE3092 | CHF873.00 | Morse N°4 | 4000 | 1400 | 500 | 0.002 | 48.6 | 24 | 80 | 29,4 | 108 | 217.4 | 20 | - | - | - |
