Type K
ref.typek
Rotating center for interchangeable bull nose center type K.
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Lifetime lubrication
- Ø Morse taper
- SV70 to MT5
- Ø Maximum revolutions per minute
- from 3000 to 7000
-
Product file
-
-
CAD file
-
Delivery Policy - 4 to 8 business days after payment receipt
Secure paiement : • Visa • MasterCard
Rotating center for interchangeable bull nose center type K.
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Lifetime lubrication
GE1159
Data sheet
- Morse taper
- SV70 to MT5
- Maximum revolutions per minute
- from 3000 to 7000
- Applications
- Gear cutting
Mechanical grinding
Turning
Applications
Turning
Gear cutting
Mechanical grinding

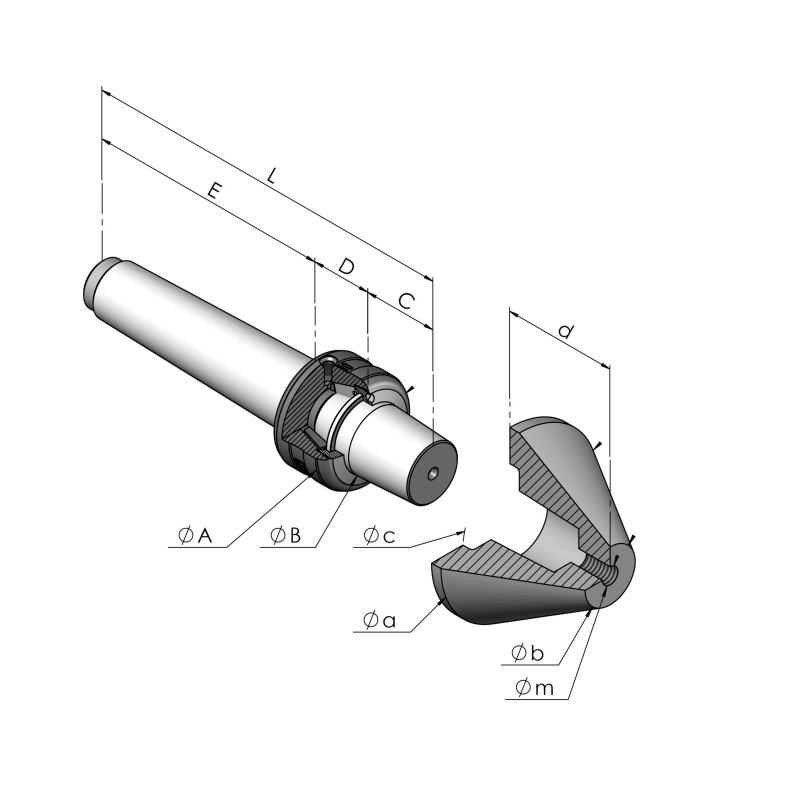

| Designation | Prix | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|
live-center Type K
| Reference | Price | Add to cart | Add to quote | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GE1159 | CHF324.00 | SV70 | 7000 | 400 | 60 | 0.002 | 20 | 10 | 12 | 13 | 43 | 68 | 35 | 10 | M5 | 24 | ||
| GE1003 | CHF294.00 | Morse N°1 | 6500 | 600 | 80 | 0.002 | 22 | 12 | 14 | 13 | 57 | 84 | 35 | 10 | M5 | 24 | ||
| GE1009 | CHF346.00 | Morse N°2 | 6000 | 800 | 150 | 0.002 | 29 | 18 | 18 | 19 | 68 | 105 | 50 | 16 | M6 | 32 | ||
| GE1014 | CHF420.00 | Morse N°3 | 5000 | 1100 | 350 | 0.002 | 40 | 24 | 26 | 24 | 85 | 135 | 65 | 20 | M8 | 43 | ||
| GE1018 | CHF495.00 | Morse N°4 | 4000 | 1400 | 500 | 0.002 | 49 | 31 | 33 | 28 | 108 | 169 | 85 | 27 | M10 | 55 | ||
| GE1022 | CHF707.00 | Morse N°5 | 3000 | 1800 | 700 | 0.002 | 60 | 40 | 46 | 33 | 136 | 214 | 110 | 37 | M12 | 70 |
