Type COP
ref.typecop
60° live center Type COP
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Lifetime lubrication
- Ø Morse taper
- MT1 to MT5
- Ø Maximum revolutions per minute
- from 3000 to 6500
-
Product file
-
-
CAD file
-
Delivery Policy - 4 to 8 business days after payment receipt
Secure paiement : • Visa • MasterCard
60° live center Type COP
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Lifetime lubrication
GE1004
Data sheet
- Morse taper
- MT1 to MT5
- Maximum revolutions per minute
- from 3000 to 6500
- Applications
- Gear cutting
Inspection
Mechanical grinding
Turning
Applications
Gear cutting
Mechanical grinding
Turning
Inspection

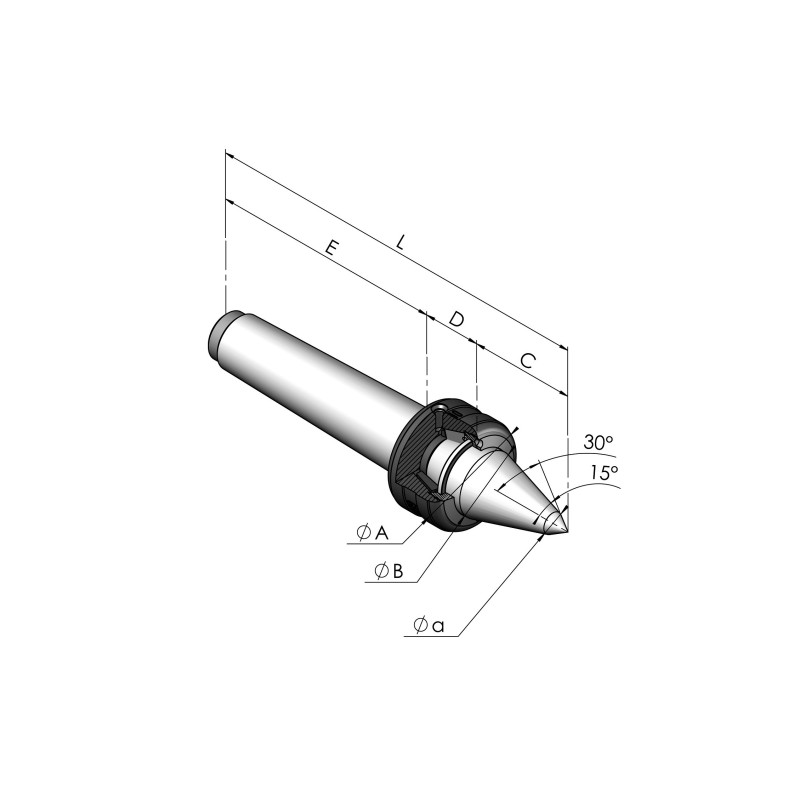

| Designation | Prix | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|
live-center Type COP
| Reference | Price | Add to cart | Add to quote | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GE1004 | CHF294.00 | Morse N°1 | 6500 | 600 | 80 | 0.002 | 22 | 12 | 36 | 13 | 57 | 90.5 | 4 | - | - | - | ||
| GE1010 | CHF346.00 | Morse N°2 | 6000 | 800 | 150 | 0.002 | 29 | 18 | 30 | 13 | 68 | 117 | 6 | - | - | - | ||
| GE1015 | CHF416.00 | Morse N°3 | 5000 | 1100 | 350 | 0.002 | 40 | 24 | 40 | 24 | 85 | 149 | 8 | - | - | - | ||
| GE1019 | CHF495.00 | Morse N°4 | 4000 | 1400 | 500 | 0.002 | 49 | 31 | 51 | 28 | 108 | 187 | 10 | - | - | - | ||
| GE1023 | CHF707.00 | Morse N°5 | 3000 | 1800 | 700 | 0.002 | 60 | 40 | 66 | 33 | 136 | 235 | 12 | - | - | - |
