Type C
ref.typec
C type Live Center.
• 60° hollow live center
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Lifetime lubrication
- Ø Morse taper
- SV70 to MT5
- Ø Maximum revolutions per minute
- from 3000 to 7000
-
Product file
-
-
CAD file
-
Delivery Policy - 4 to 8 business days after payment receipt
Secure paiement : • Visa • MasterCard
C type Live Center.
• 60° hollow live center
• Concentricity guaranteed to 2 microns, can be more precise upon request
• In-house manufactured tapered roller bearings allow for a minimal bulk and self-adjustment both radially and axially
• Facilitates tool passage
• Lifetime lubrication
GE1069
Data sheet
- Morse taper
- SV70 to MT5
- Maximum revolutions per minute
- from 3000 to 7000
- Applications
- Gear cutting
Inspection
Mechanical grinding
Turning
Applications
Turning
Inspection
Gear cutting
Mechanical grinding

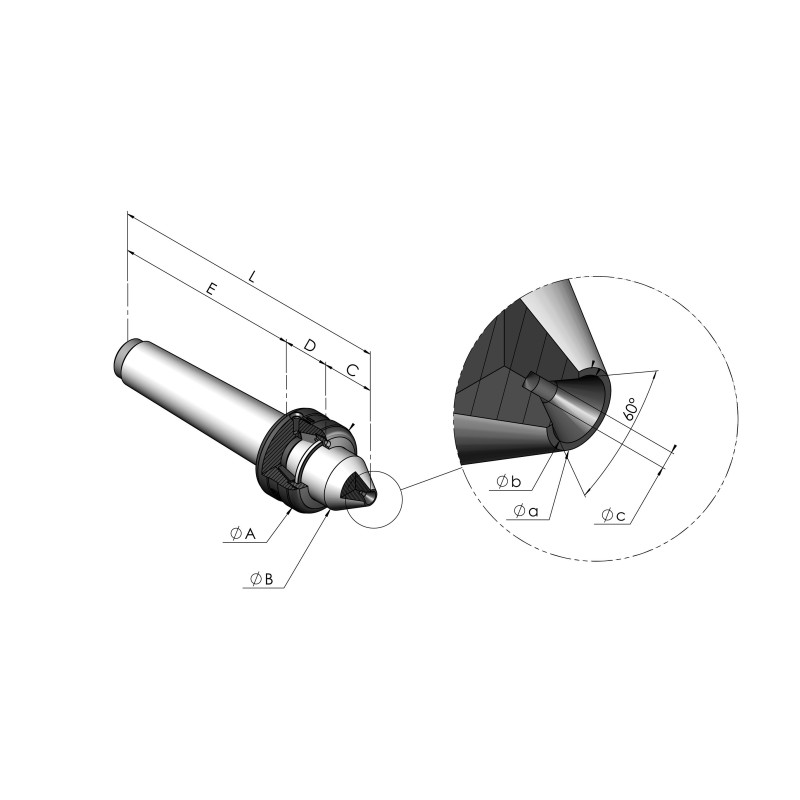

| Designation | Prix | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|
live-center Type C
| Reference | Price | Add to cart | Add to quote | Dimension | Maximum revolutions per minute | Axial load | Radial load | Concentricity less than mm | Diameter A | Diameter B | C | D | E | L | Diameter a | Diameter b | Diameter m | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GE1069 | CHF324.00 | SV70 | 7000 | 400 | 60 | 0.002 | 20 | 10 | 12 | 13 | 43 | 68 | 3.2 | 2.5 | - | - | ||
| GE1002 | CHF294.00 | Morse N°1 | 6500 | 600 | 80 | 0.002 | 22 | 12 | 14 | 13 | 57 | 84 | 3.8 | 3 | - | - | ||
| GE1008 | CHF346.00 | Morse N°2 | 6000 | 800 | 150 | 0.002 | 29 | 18 | 16 | 19 | 68 | 103 | 5.5 | 4.5 | - | - | ||
| GE1013 | CHF416.00 | Morse N°3 | 5000 | 1100 | 350 | 0.002 | 40 | 24 | 23 | 24 | 85 | 132 | 7.5 | 6 | - | - | ||
| GE1017 | CHF495.00 | Morse N°4 | 4000 | 1400 | 500 | 0.002 | 49 | 31 | 30 | 28 | 108 | 166 | 12 | 10 | - | - | ||
| GE1021 | CHF707.00 | Morse N°5 | 3000 | 1800 | 700 | 0.002 | 60 | 40 | 36 | 33 | 136 | 205 | 18 | 15 | - | - |
