Type K 10% interchangeable insert

Type K 10% interchangeable

ref.emboutik

K type (bull noise point) 10% interchangeable taper insert with for live center, for high-precision machining.

Ø Morse
10% M3 to M5
Product file
Dimension
Concentricity less than mm
Diameter A
C
Diameter b
Diameterm
Quantity
Waiting for restocking

Ask a quote


Delivery Policy - 4 to 8 business days after payment receipt



Secure paiement : • Visa • MasterCard

K type (bull noise point) 10% interchangeable taper insert with for live center, for high-precision machining.

ER2107

Data sheet

Morse
10% M3 to M5
Applications
Gear cutting
Inspection
Mechanical grinding
Turning

Applications

Turning

Inspection

Gear cutting

Mechanical grinding

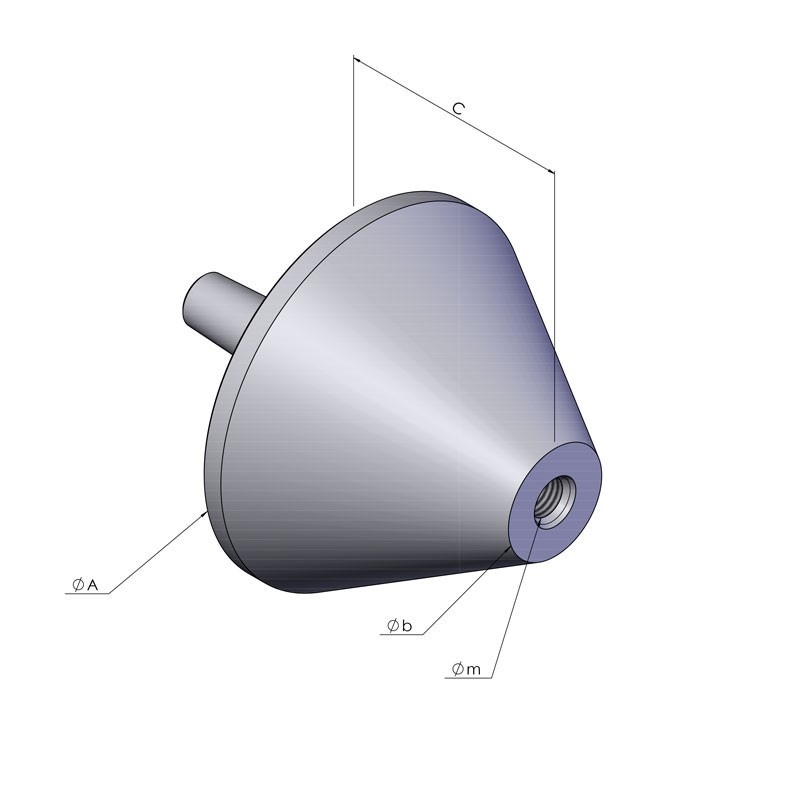

Type K 10% interchangeable insert technical drawing
Type K 10% interchangeable insert technical drawing
Designation Prix Dimension Concentricity less than mm Diameter A C Diameter b Diameter m

interchangeable-insert-centers Type K 10% interchangeable

Reference Price Add to cart Add to quote Dimension Concentricity less than mm Diameter A C Diameter b Diameter m
ER2107 CHF195.00
Morse N°3 0.002 40 43 20 M8
ER1869 CHF147.00
Morse N°4 0.002 65 55 27 M10
ER2110 CHF232.00
Morse N°5 0.002 85 68 37 M12
