Type DIN 807 half carbide tip with thread
ref.din807h
Solid center DIN 807 half carbide tip with thread, morse taper size ranging from N°1 to N°5, for high-precision machining.
- Ø Morse taper
- MT1 to MT5
- Ø Type of tip
- With carbide
-
Product file
-
-
CAD file
-
Delivery Policy - 4 to 8 business days after payment receipt
Secure paiement : • Visa • MasterCard
Solid center DIN 807 half carbide tip with thread, morse taper size ranging from N°1 to N°5, for high-precision machining.
GE2263
Data sheet
- Morse taper
- MT1 to MT5
- Type of tip
- With carbide
- Applications
- Gear cutting
Inspection
Turning
Applications
Turning
Inspection
Gear cutting

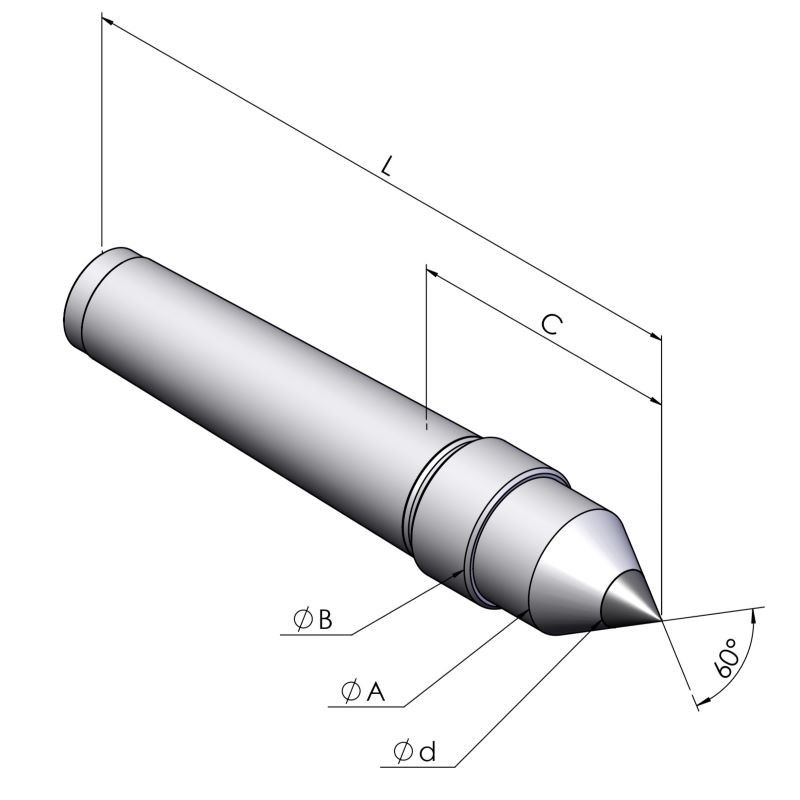

| Designation | Prix | Diameter A | Diameter B | C | L | diameter d |
|---|
dead-center Type DIN 807 half carbide tip with thread
| Reference | Price | Add to cart | Add to quote | Diameter A | Diameter B | C | L | diameter d |
|---|---|---|---|---|---|---|---|---|
| GE2263 | CHF0.00 Sold out | 45334 | M16X1.5 | 36.5 | 90 | 7 | ||
| GE2265 | CHF0.00 Sold out | 18 | M22X1.5 | 48 | 112 | 7 | ||
| GE2267 | CHF0.00 Sold out | 12.2 | M27X1.5 | 57 | 138 | 11 | ||
| GE2269 | CHF320.00 | 31.6 | M36x1.5 | 72.5 | 175 | 14 | ||
| GE2271 | CHF0.00 Sold out | 44.7 | M48X1.5 | 87.5 | 217 | 18 |
